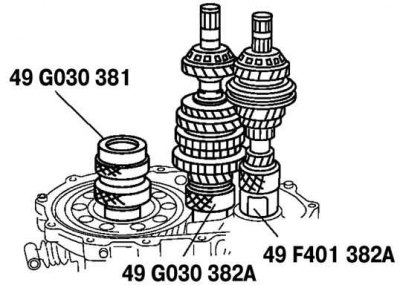

Pic. 3.56. Installing the input and output shafts in the clutch housing
Install the shafts with gears, as shown in Figure 3.56.

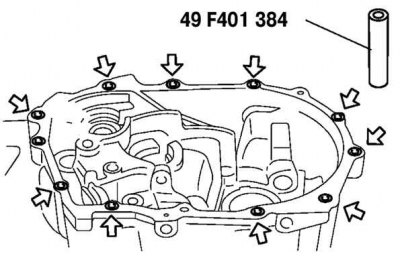

Pic. 3.57. Installing a special tool
Install special tool (bushings) to the positions shown in Figure 3.57.
Installing the differential in the clutch housing
Install differential in clutch housing, install bearing race and special tool (selector) to the differential. Install special fixtures (selectors) for the input and output shaft in the clutch housing.
Pic. 3.56. Installing the input and output shafts in the clutch housing
Install the shafts with gears, as shown in Figure 3.56.
Pic. 3.57. Installing a special tool
Install special tool (bushings) to the positions shown in Figure 3.57.
Pic. 3.56. Installing the input and output shafts in the clutch housing
Install the shafts with gears, as shown in Figure 3.56.
Pic. 3.57. Installing a special tool
Install special tool (bushings) to the positions shown in Figure 3.57.
